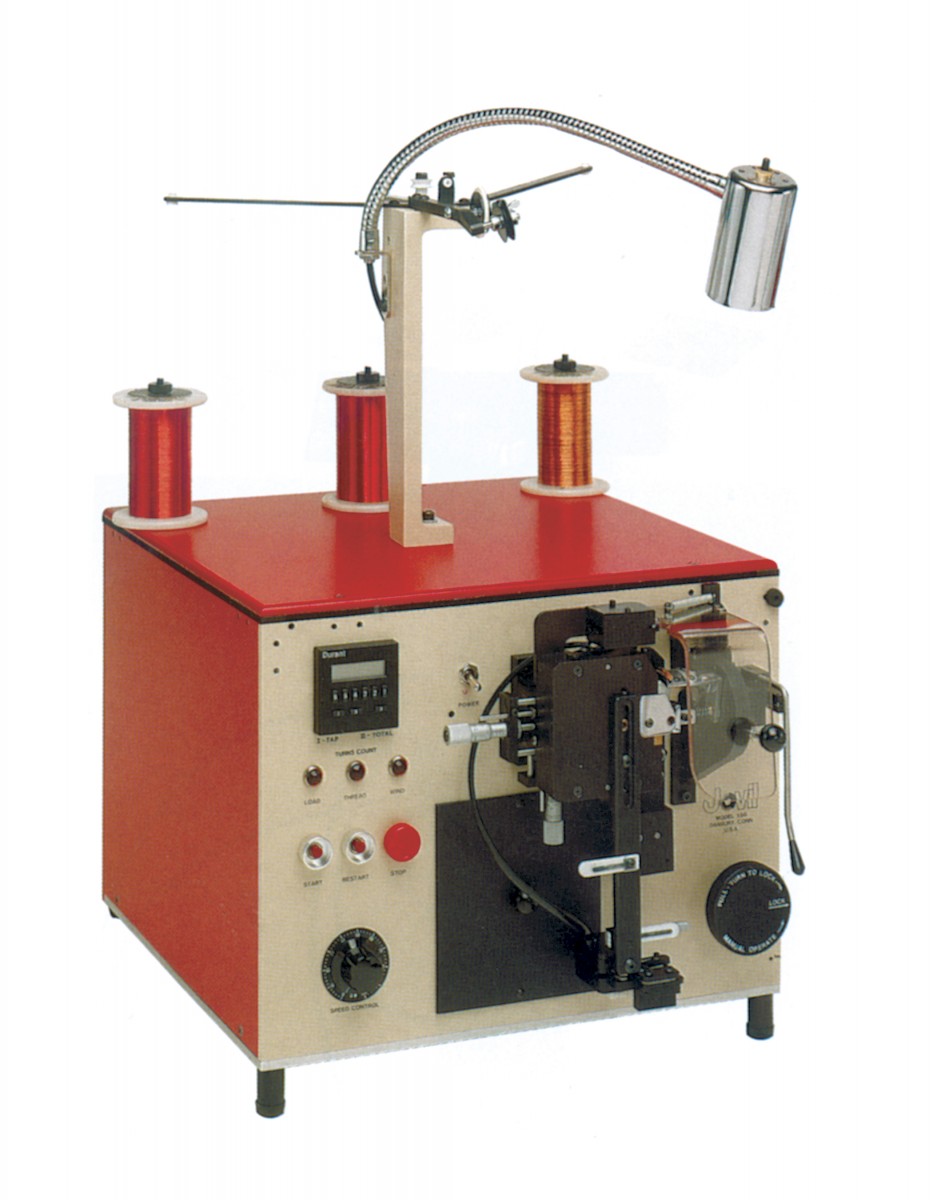

Principal and optional features

  • Automatic pull type winder for miniature coils
  • Multi-cores-per-minute capability
  • Absolutely simple to run (operator can be trained in minutes)
  • 9" maximum wire capacity (23.0 cm)
  • Maximum of one layer winding on core
  • Multi-layer windings not possible
  • No pre-cutting/pre-loading of shuttles because there are no shuttles used
  • Available with automatic tap puller (one tap per coil)
  • Will wind single, bifilar or trifilar winding
  • Adjustable, automatic core rotation for controlled wire spacing
  • Dual preset electronic turns counter
  • Push button controls/operator safety guard
  • Handwheel for manual operation
  • Micrometer “x” and “y” axis adjustments for centering core with needle

Specifications/Capabilities

Maximum Wire Size: #30 AWG (0.25 mm)

Minimum Wire Size: #42 AWG (0.06 mm)

Maximum Coil O.D.: 0.312" (8.0 mm)

Minimum Coil O.D.: 0.100" (2.5 mm)

Minimum Coil I.D.: 0.040" (1.0 mm)

Maximum Coil Height: 0.150" (3.8 mm)

Winding Speeds: Variable to 85 tpm

Wire Spacing: Variable, automatic (360 ̊ maximum)

Maximum Wire Length: 9.0" (23.0 cm)

Core Rotation: 0 ̊ to 360 ̊ (one layer winding maximum)

Motor: Fractional DC

Power Requirement: 110-120 V, A.C., 50-60 cycles (220 V Optional)

Crated Dimensions: 37" x 37" x 42" (94 x 94 x 107 cm)

Crated Weight: 100 lbs (46 kg)

All compatible accessories
